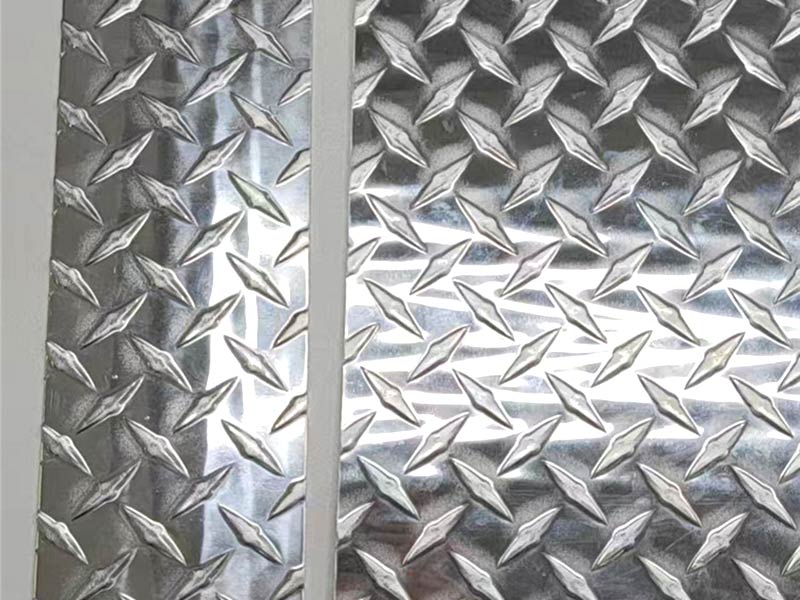

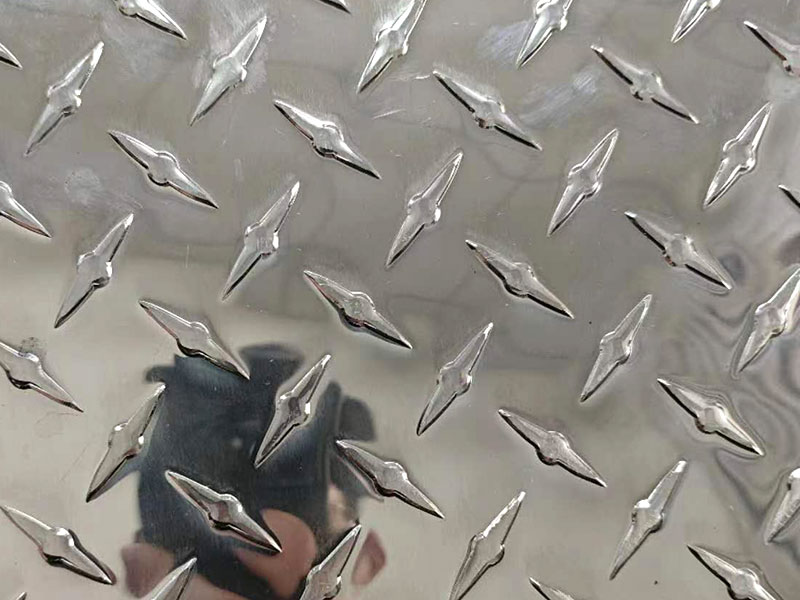

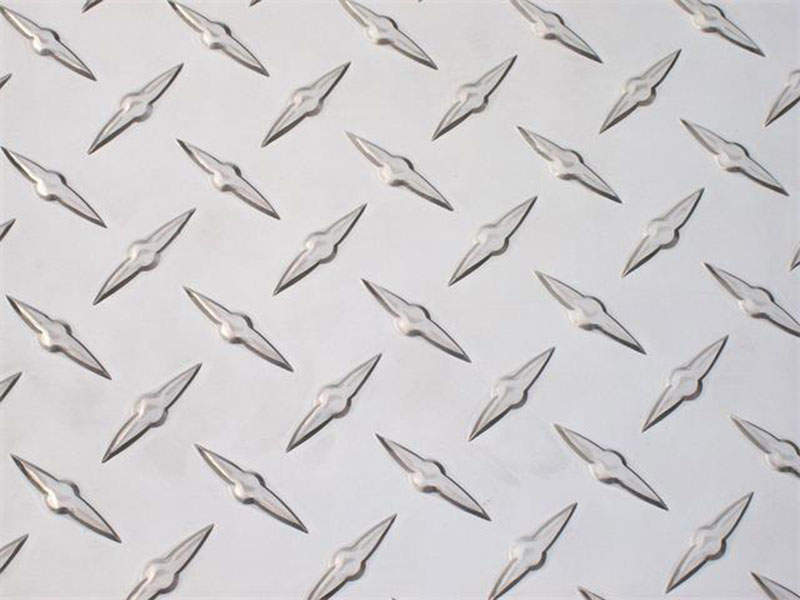

Aluminum Diamond Plate
Aluminum diamond plate are used in parking lots, stairways, loading docks, boats and other marine applications. These boards are highly corrosion-resistant and easy to clean.
Email: export@xienuoenterprise.com
Aluminum Diamond Plate
What Is An Aluminum Diamond Plate?
Diamond aluminum plate is a high-end building decoration material with the characteristics of steel strength, aluminum lightness and diamond texture. It is widely used in various high-end buildings, interior decoration, automobile industry and other fields.
Aluminum Diamond Plate Alloy Designation (For Reference)
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 1xxx Series | 1050 | – | – |
| 1060 | 1060 | – | |
| 1100 | 1100 | – | |
| 3xxx Series | 3003 | 3003 | EN AW-3003 |
| 3105 | 3105 | EN AW-3105 | |
| 5xxx Series | 5052 | 5052 | EN AW-5052 |
| – | 5754 | EN AW-5754 |
Product Videos
Aluminum Diamond Plate Specification and Size :
– Standard Specification of aluminum diamond plate sheets: GB/T 3618, Base material conforms to GB/T 3880
Aluminum diamond plate sizes are customizable. Includes aluminum diamond pattern plate dimensions
| Alloy | Temper | Remarks | Thickness | Width | Surface Finish | Pattern Height | Pattern Length |
| 1xxxx: 1050, 1060, 1100 | O, H114, H194 | Temper H12, H14, H22, H24, H32 and H34, which are applied to base material are provided as per client’s request and mutually agreement. | 1.0-5.0mm | 900-1550mm | Bright finish, Mill finish | 1.0mm, +/-0.4mm | 33mm, +/-2.0mm |
| 3xxx: 3003, 3004, 3005, 3104, 3105 | 1.2-5.0mm | 900-1550mm | |||||
| 5xxx: 5005, 5052, 5754 | O, H114 | 1.5-5.0mm | 900-1550mm |
Aluminum Diamond Plate Chemical Compositing
Chemical Composition conforms to Chinese, American and European standard specification (For Reference) of aluminium chequer plate sheets.
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:Each | Others:Total | Al:Min. |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | – | 0.05 | 0.05 | 0.03 | – | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | – | 0.05 | 0.03 | 0.03 | – | 99.6 |
| 1100 | 0.95 Si + Fe | 0.05-0.2 | 0.05 | – | – | 0.10 | – | 0.05 | 0.15 | 99.0 | |
| 3003 | 0.60 | 0.70 | 0.05-0.2 | 1.0-1.5 | – | – | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 3105 | 0.60 | 0.70 | 0.03 | 0.3-0.8 | 0.2-0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.10 | – | 0.05 | 0.15 | remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6-3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | remainder |
Aluminum Diamond Plate Applications
Aluminum diamond plate are used in parking lots, stairways, loading docks, boats and other marine applications. These boards are highly corrosion-resistant and easy to clean.
| Type | Applications |
| Vehicle | Van-type vehicle catwalk flooring, wood step of the bus or truck, train inspection hole lid, tank car, the car cold storage. |
| Ship | Orridor and bridges over the lid and floors, stairs, cabin deck, fish tank, gangway to the floating dock. |
| Architecture | Floors, stairs, shelves, such as gutter lid, the bicycle. |
| Factory | Bench floor and stairs, equipment/ plant machinery, such as ambulatory inspection. |
| Other | Deck ladder, ladder, showcase, carousel, temporary scaffolding, the structure of marine. |
