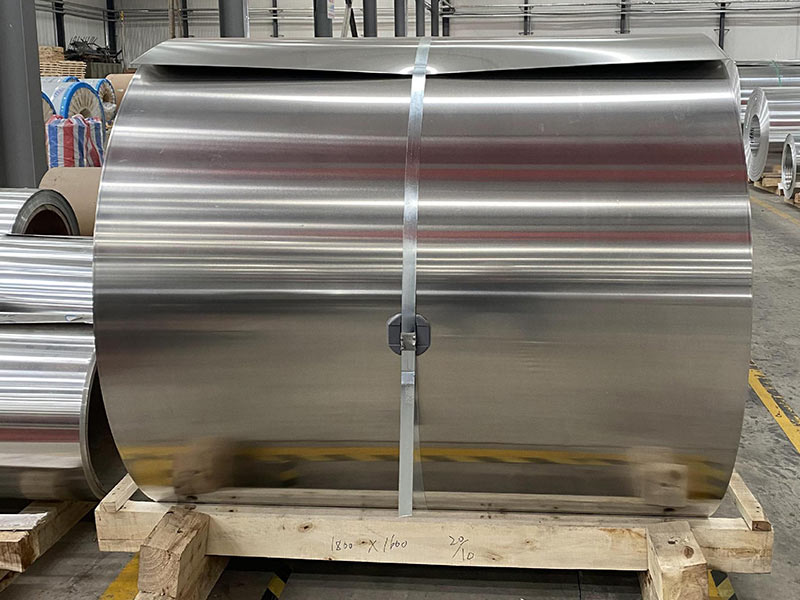

5083 Aluminum Coil and Strip
5083 is a high magnesium alloy with good medium strength among non-heat treatable alloys, good corrosion resistance, weldability and machinability. The surface is beautiful after oxidation treatment.
Email: export@xienuoenterprise.com
5083 Aluminum Coil and Strip
5083 is a high magnesium alloy with good medium strength among non-heat treatable alloys, good corrosion resistance, weldability and machinability. The surface is beautiful after oxidation treatment.
5083 Aluminum Coil DC / CC Alloy designation (For Reference)
Comparison of Alloy Designations for 5083 aluminum sheet coil.
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 5xxx Series | 5083 | 5083 | EN AW-5083 |
5083 Aluminum Coil DC / CC Chemical Compositing
Chemical Composition conforms to Chinese, American and European standard specification (For Reference)
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.25 | 0.05-0.25 | 0.15 |
Product Videos
Mechanical properties of 5083 aluminum coil
| Tensile strength σb (MPa) | 110-136 |
| Elongation δ10 (%) | ≥20 |
| Annealing temperature is | 415℃ |
| Yield strength σs (MPa) | ≥110 |
| pecimen blank dimensions | All wall thicknesses |
5083 Aluminum Coil DC / CC Temper designation (For Reference)
| Temper | Definition |
| O | Annealed |
| H12 | Strain Hardened, 1/4 Hard |
| H14 | Strain Hardened, 1/2 Hard |
| H16 | Strain Hardened, 3/4 Hard |
| H18 | Strain Hardened, Full Hard |
| H22 | Strain Hardened and Partially Annealed, 1/4 Hard |
| H24 | Strain Hardened and Partially Annealed, 1/2 Hard |
| H26 | Strain Hardened and Partially Annealed, 3/4 Hard |
| H28 | Strain Hardened and Partially Annealed, Full Hard |
5083 Aluminum Coil DC / CC Available Size Range
| Alloy | 5083 |
| Temper | O,H12,H14, H16,H18,H19, H22,H24,H26, H28,H32,H34 H36,H38,H111, H112,H114,H 116,H321 |
| Thickness（mm） | 0.2-8.0mm |
| Width（mm） | 20-2650mm |
| Standards | GB, EN, ASTM, AISI, JIS, DIN. |
| Surface Treatment | Anodizing, Color coating, Embossing, Lamination, Polishing etc. |
| Packaging | Standard export wooden box/pallet packaging, suitable for sea transportation |
Characteristics of 5083 aluminum coil
1. Low density and high strength;
2. Economical and environmentally friendly, with high safety performance;
3. The surface is beautiful after anodizing treatment;
4. The arc welding performance is good;
5. Good forming performance, corrosion resistance and weldability;
6. Marine aluminum plates can reduce ship weight by more than 20%
Application of 5083 aluminum coil
5083 aluminum alloy is commonly used in ships, ships, vehicle materials, automobile and aircraft plate welding parts, pressure vessels, refrigeration devices, television towers, drilling equipment, transportation equipment, etc.
