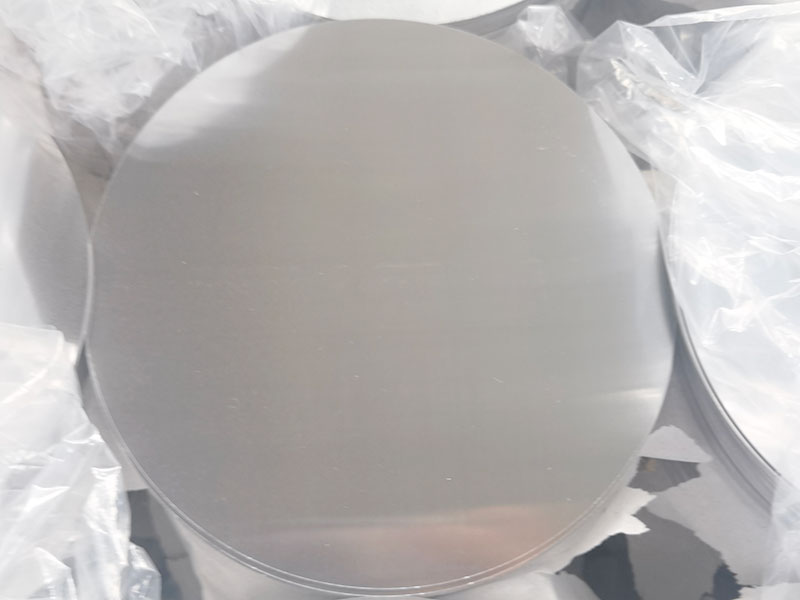

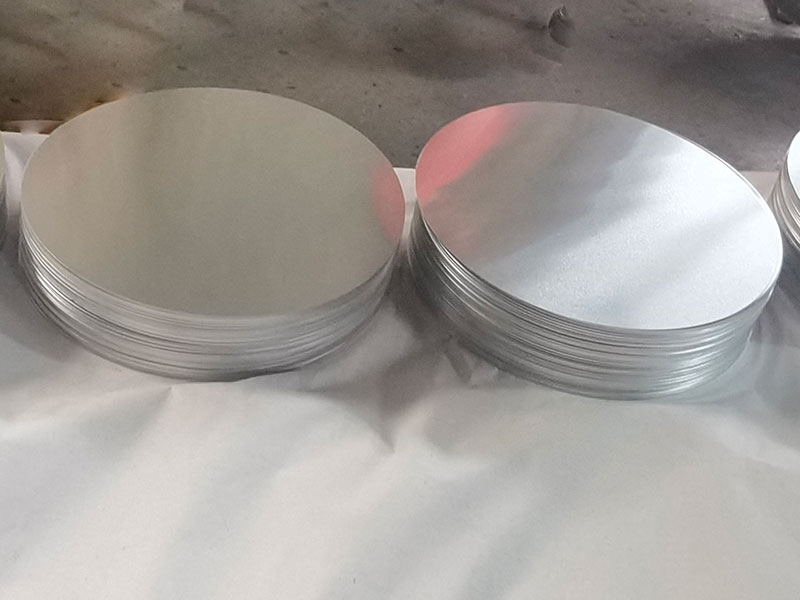

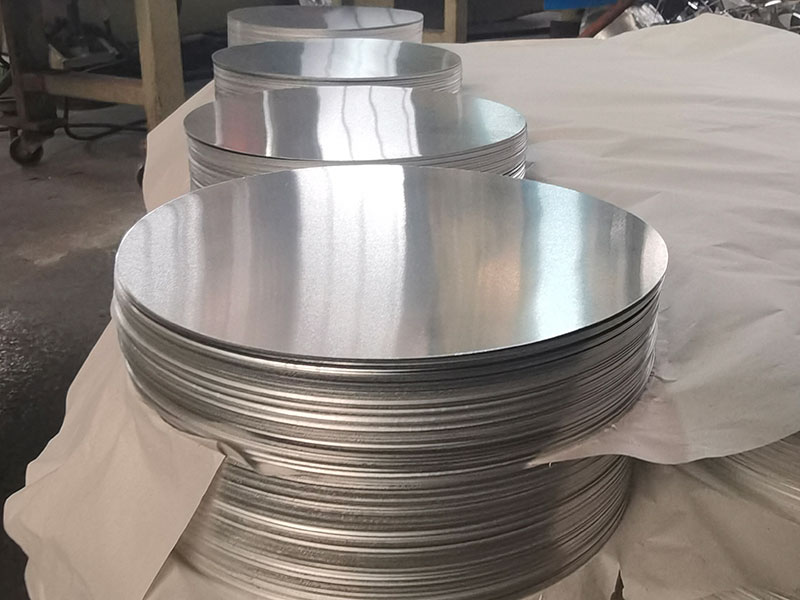

5083 Aluminum Circle and Disc
5083 is an Al-Mg alloy with a wide range of applications, good corrosion resistance, good weldability, good cold drawability, and medium strength.
Email: export@xienuoenterprise.com
5083 Aluminum Circle and Disc
5083 is an Al-Mg alloy with a wide range of applications, good corrosion resistance, good weldability, good cold drawability, and medium strength.
5083 Aluminum Circle DC / CC Alloy Designation (For Reference)
5083 aluminum circles blank of XieNuo Aluminum Company is produced according to the standards of chinese GB.
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 5xxx Series | 5083 | 5083 | – |
5083 Aluminum Circle DC / CC Chemical Compositing
Chemical Composition conforms to Chinese, American and European standard specification (For Reference)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:Each |
| 5083 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6-3.6 | 0.30 | 0.20 | 0.15 | 0.05 |
Product Videos
Mechanical Properties Of 5083 Aluminum Circle
| Tensile strength σb (MPa) | 110-136 |
| Elongation δ10 (%) | ≥20 |
5083 Aluminum Circle CC / DC Diameter Tolerance
| Nominal Diameter | Tolerance |
| Diameter tolerance | +/- 1mm |
5083 Aluminum Circle CC / DC Temper (For Reference)
| Temper | Definition |
| O | Annealed |
| H12 | Strain Hardened, 1/4 Hard |
| H14 | Strain Hardened, 1/2 Hard |
| H16 | Strain Hardened, 3/4 Hard |
| H18 | Strain Hardened, Full Hard |
| H22 | Strain Hardened and Partially Annealed, 1/4 Hard |
| H24 | Strain Hardened and Partially Annealed, 1/2 Hard |
| H26 | Strain Hardened and Partially Annealed, 3/4 Hard |
| H28 | Strain Hardened and Partially Annealed, Full Hard |
Characteristics Of 5083 Aluminum Circle
First, easy to process. The hardness is relatively moderate and can be formed by simple bending. After continuous high-speed stamping, it can be directly processed into products.
Second, it has strong fire resistance. Pure metal products, without paint or other chemical substances on the surface, meet the needs of fire protection and environmental protection.
Third, strong applicability: it has a wide range of uses and can be used in many places in life.
Application Of 5083 Aluminum Circle
5083 aluminum discs have high corrosion resistance, excellent forgeability and medium strength applications, such as ship, vehicle and airport plate weldments;
5083 aluminum discs are also widely used in various types of required aluminum discs such as stretched aluminum discs for cookware, stretched aluminum discs for lamps, aluminum discs for traffic signs, aluminum cans and can heads in the aluminum processing manufacturing industry, aluminum disc industry.
