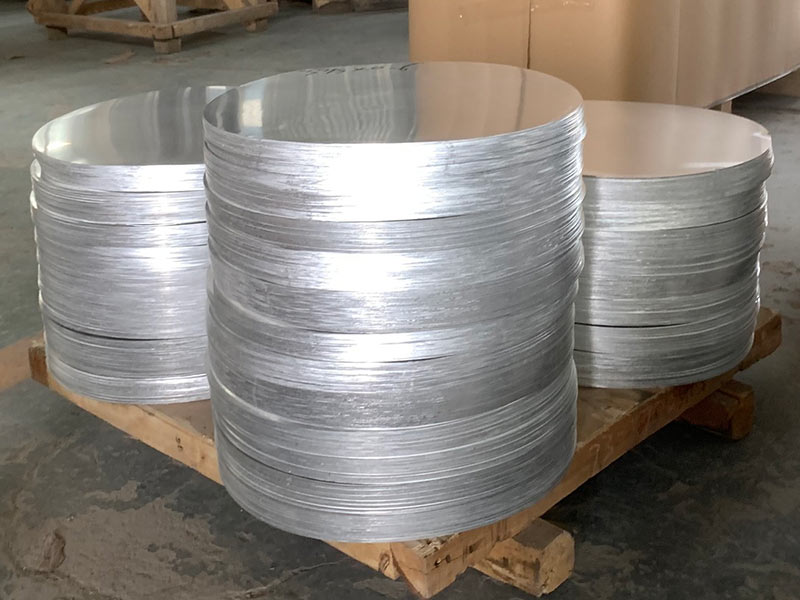

1070 Aluminum Circle and Disc
1070 aluminum discs are used in products that do not require high strength, such as chemical instruments, thin plate processing parts, deep drawing or spinning concave vessels, welded parts, heat exchangers, clock surfaces and disks, nameplates, kitchen utensils, decorations, Reflective equipment, etc.
Email: export@xienuoenterprise.com
1070 Aluminum Circle and Disc
1070 Aluminum Circle DC / CC Alloy Designation (For Reference)
1070 aluminum discs blank of XieNuo Aluminum Company is produced according to the standards of chinese GB.
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 1xxx Series | 1070 | 1070 | – |
1070 Aluminum Circle DC / CC Chemical Compositing
Chemical Composition conforms to Chinese, American and European standard specification (For Reference)
| Alloy | Si | Fe | Cu | Mn | Zn | Ti | V | Al |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.04 | 0.03 | 0.05 | 99.7 |
Product Videos
Mechanical Properties Of 1070 Aluminum Circle
| Tensile strength σb (MPa) | 55～95 |
| Elongation δ5 (%) | ≥30 |
| The conductivity can reach more than | 35.7 S/m |
1070 Aluminum Circle CC / DC Diameter Tolerance
| Nominal Diameter | Tolerance |
| Diameter tolerance | +/- 1mm |
1070 Aluminum Circle CC / DC Temper (For Reference)
| Temper | Definition |
| O | Annealed |
| H12 | Strain Hardened, 1/4 Hard |
| H14 | Strain Hardened, 1/2 Hard |
| H16 | Strain Hardened, 3/4 Hard |
| H18 | Strain Hardened, Full Hard |
| H22 | Strain Hardened and Partially Annealed, 1/4 Hard |
| H24 | Strain Hardened and Partially Annealed, 1/2 Hard |
| H26 | Strain Hardened and Partially Annealed, 3/4 Hard |
| H28 | Strain Hardened and Partially Annealed, Full Hard |
Characteristics Of 1070 Aluminum Circle
1. Low density, good electrical and thermal conductivity, good corrosion resistance, and good plastic processing performance
2. Can be processed into plates, strips, foils and extruded products, etc.
3. Can perform gas welding, argon arc welding and spot welding
4. It cannot be strengthened by heat treatment. The strength can be improved through cold deformation. The only form of heat treatment is annealing.
Application Of 1070 Aluminum Circle
1070 aluminum discs are used in products that do not require high strength, such as chemical instruments, thin plate processing parts, deep drawing or spinning concave vessels, welded parts, heat exchangers, clock surfaces and disks, nameplates, kitchen utensils, decorations, Reflective equipment, etc.
